MSD universal Boost timing master
MSD universal Boost timing master
I searched and searched and searched. Has anyone installed one of these on a SOHC? There's a fat wire (blue) and a thin wire (yellow, blue line) running to the SOHC coil. The fat one is positive (+), correct? The MSD Universal BTM manual shows how to install onto a ford TFI ignition system on page 3. Is the SOHC ignition system basically the same thing as a Ford TFI system?
-
Ryan
- Senior Member
- Posts: 7199
- Joined: April 7th, 2008, 1:06 pm
- antispam: ~SPAM*SUX~
- Location: Manitoba
Re: MSD universal Boost timing master
All you need is the tach signal. IIRC thats a yellow wire from the disty.
Are you boosting your SOHC?
Are you boosting your SOHC?
Now with Moderator power!
Black '93 BP RS - wrecked, parted, scrapped.
Green GS - Sold.
Black GS - Summer DD/Race car - Fancy KLZE
Red GS - K8-ATX -> MTX-KLDE - Frakencar. Scrapped
White GS - Rusty. Parts. Scrapped
1997 BMW M3 - my summer baby
2002 BMW 325Xi - sold
2003 Forester Xti - EJ20K swapped.
Feedback
Black '93 BP RS - wrecked, parted, scrapped.
Green GS - Sold.
Black GS - Summer DD/Race car - Fancy KLZE
Red GS - K8-ATX -> MTX-KLDE - Frakencar. Scrapped
White GS - Rusty. Parts. Scrapped
1997 BMW M3 - my summer baby
2002 BMW 325Xi - sold
2003 Forester Xti - EJ20K swapped.
Feedback
Re: MSD universal Boost timing master
Thanx for replying! Yes, I am, clicky.
I'm so stupid when it comes to piggybacking timing control. How do I set it up with just the tach signal? Doesn't the BTM still need to modify the timing? So I will have to wire into the spark signal to the coil somehow correct?

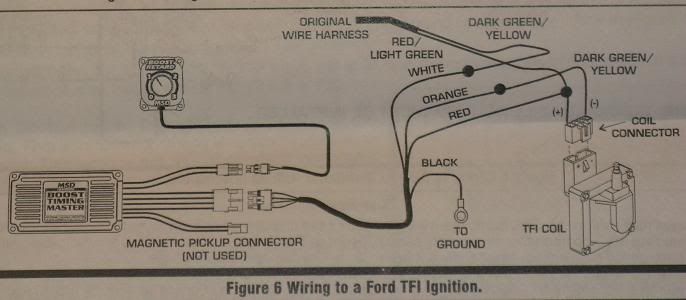

Here's how the BTM is wired into a ford tfi ignition system:
On the BTM the white wire: "This is the trigger wire and connects to the points or electronic ignition trigger wire". And for a single coil tfi setup connects to the negative on the harness to the coil input. Red wire on the BTM: "Connects to switched 12 volts or coil positive. If a ballast resistor is used, it must be bypassed."
The positive (+) at the coil input is a tach signal source correct? So the above is all I have to do?
I'm so stupid when it comes to piggybacking timing control. How do I set it up with just the tach signal? Doesn't the BTM still need to modify the timing? So I will have to wire into the spark signal to the coil somehow correct?
Here's how the BTM is wired into a ford tfi ignition system:
On the BTM the white wire: "This is the trigger wire and connects to the points or electronic ignition trigger wire". And for a single coil tfi setup connects to the negative on the harness to the coil input. Red wire on the BTM: "Connects to switched 12 volts or coil positive. If a ballast resistor is used, it must be bypassed."
The positive (+) at the coil input is a tach signal source correct? So the above is all I have to do?
Re: MSD universal Boost timing master
OK! After researching a LONG time, I think I found what I need. . .
Wiring For A 5462 On A Stock Ignition 1.8bpt - MSD Ignition Tech Support Forums
Mazda W/ BTM - MSD Ignition Tech Support Forums
The second one in particular. The guy got the btm to work in his 1993 MX-3 with the stock sohc coil and bpt swap using the tfi ford ignition instructions. But the tach didnt work. But after the tach adapter here was installed apparently it worked fine.
Another $50, but what can you do
. . .
. . .Oh, and the guy in the second MSD forum link is on here: BuGS.
Wiring For A 5462 On A Stock Ignition 1.8bpt - MSD Ignition Tech Support Forums
Mazda W/ BTM - MSD Ignition Tech Support Forums
The second one in particular. The guy got the btm to work in his 1993 MX-3 with the stock sohc coil and bpt swap using the tfi ford ignition instructions. But the tach didnt work. But after the tach adapter here was installed apparently it worked fine.
Another $50, but what can you do
. . .. . .Oh, and the guy in the second MSD forum link is on here: BuGS.
