Post What I've been up to...
So I was in the shop today for about 5 or 6 hours. I had started last week and gotten quite a bit done but I wasn't happy with the quality, so today I basically started over. Here's what you do...

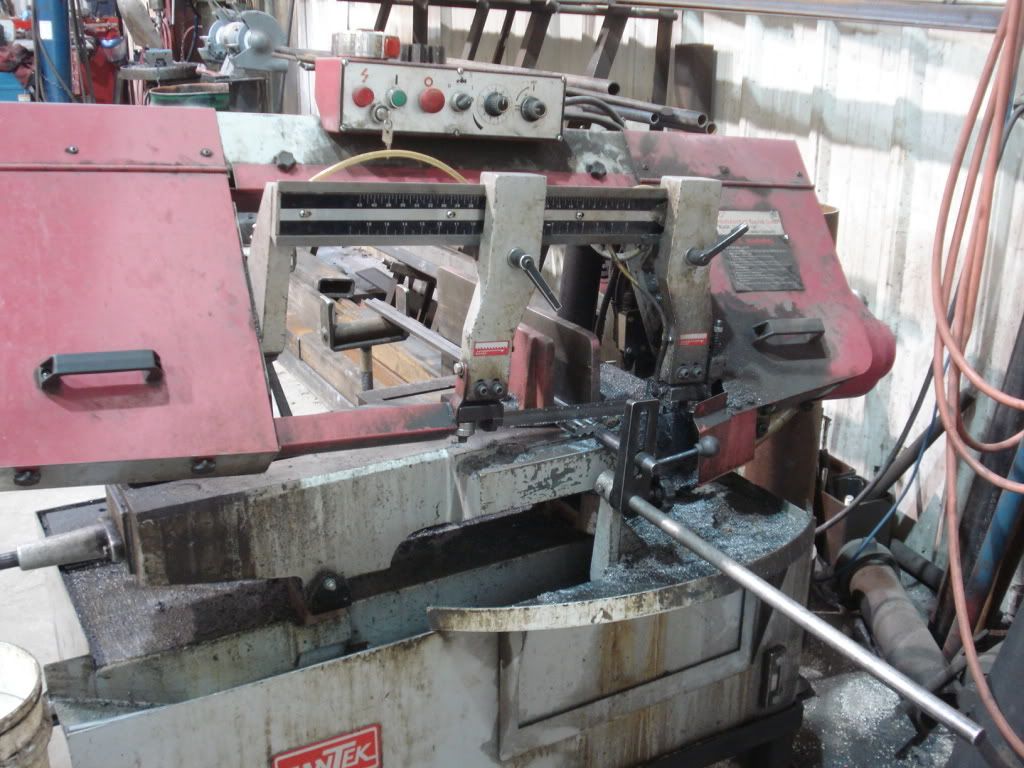

You start with some 5/8" steel Hex bar stock and a band saw. Here I'm cutting 24, ~1" long pieces.

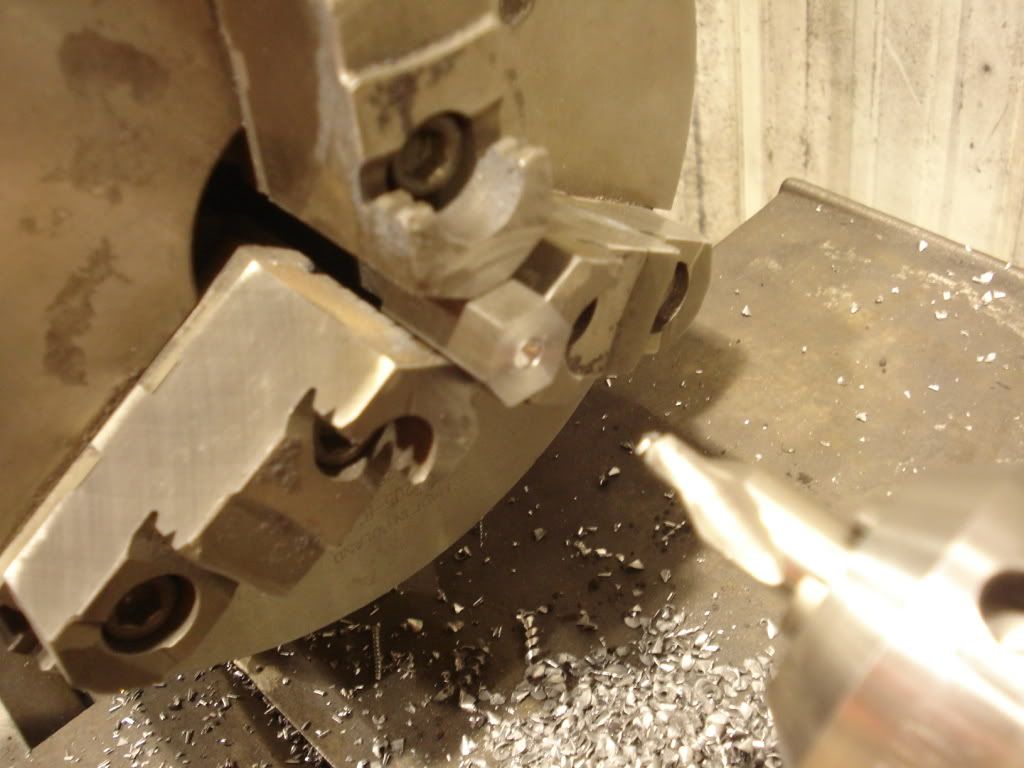

Then you move over to the lathe. First you face the work to make it square...

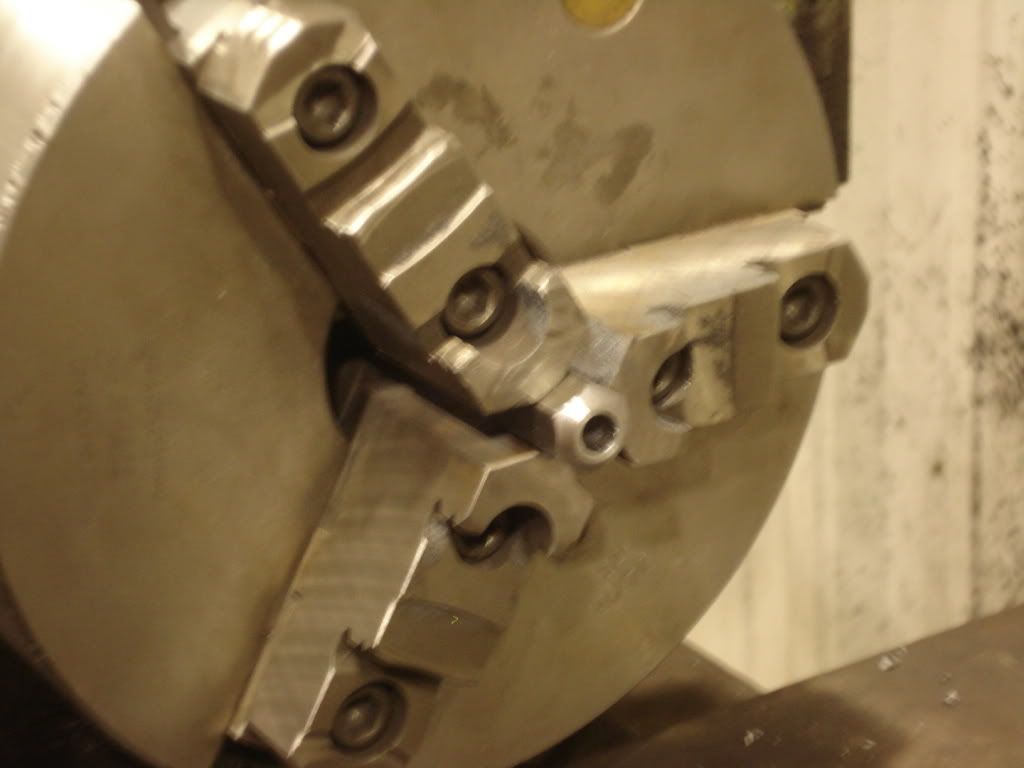

Then you center drill...

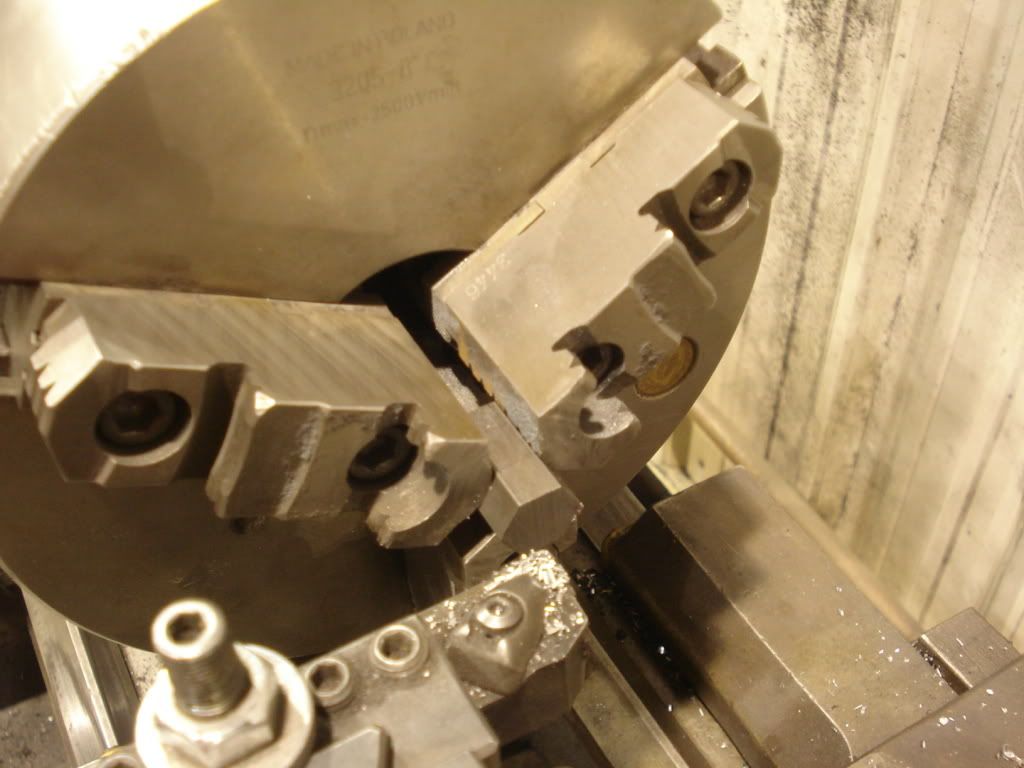

Then you drill...

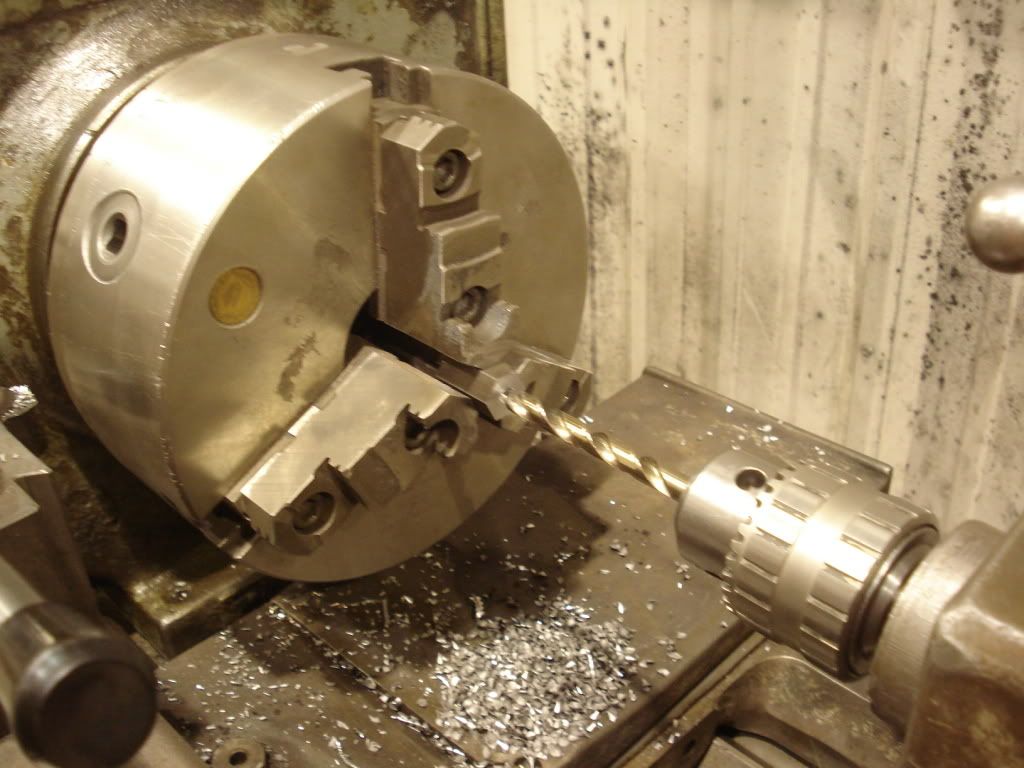

Then you make them pretty...

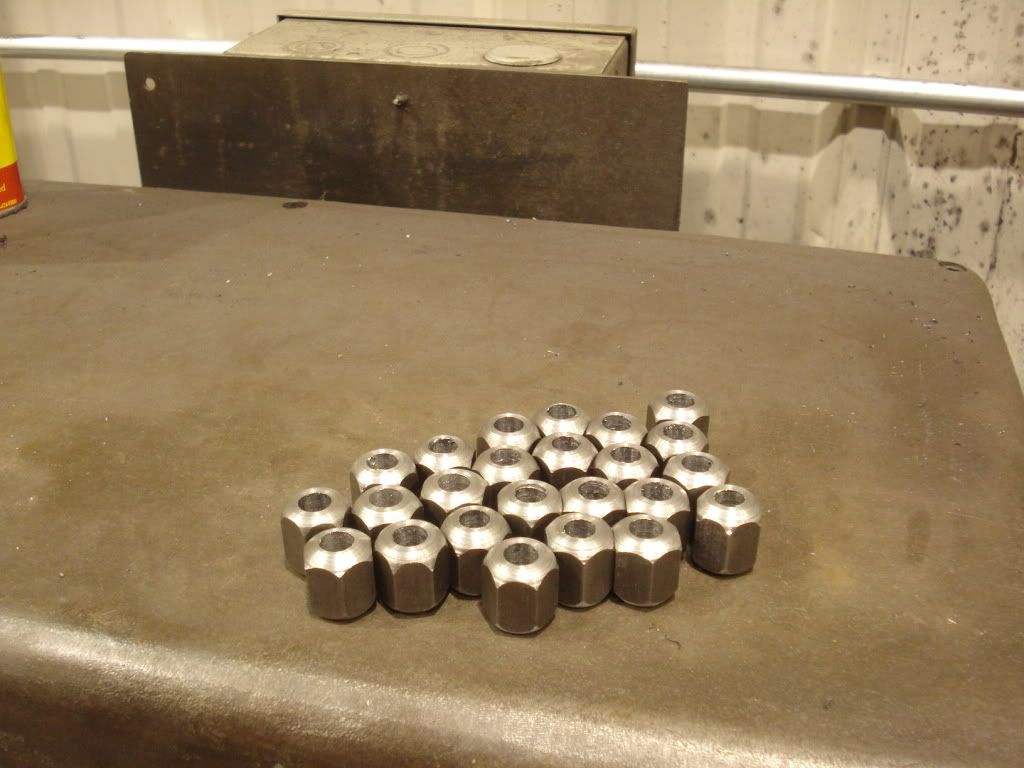

Then you turn them around and face them to length and make the other end pretty and voila...you have a bunch of 3/4" long coupling nuts. Except that they're not threaded yet.




Tomorrow night I will be finishing threading and painting the coupling nuts and figuring out how to clamp the rod ends to cut them down to size.

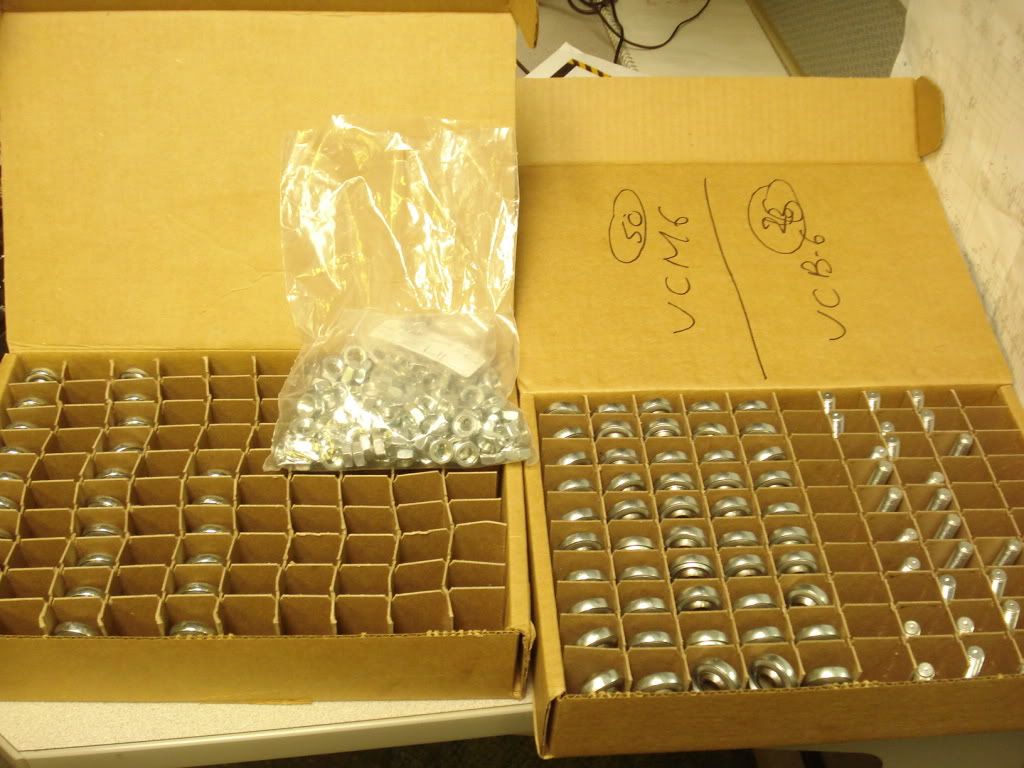

Here's what $1000 worth of rod ends looks like in case you were wondering.


So there's my Sunday in a nutshell. I hope to be finished everything tomorrow. I'll let you all know.
